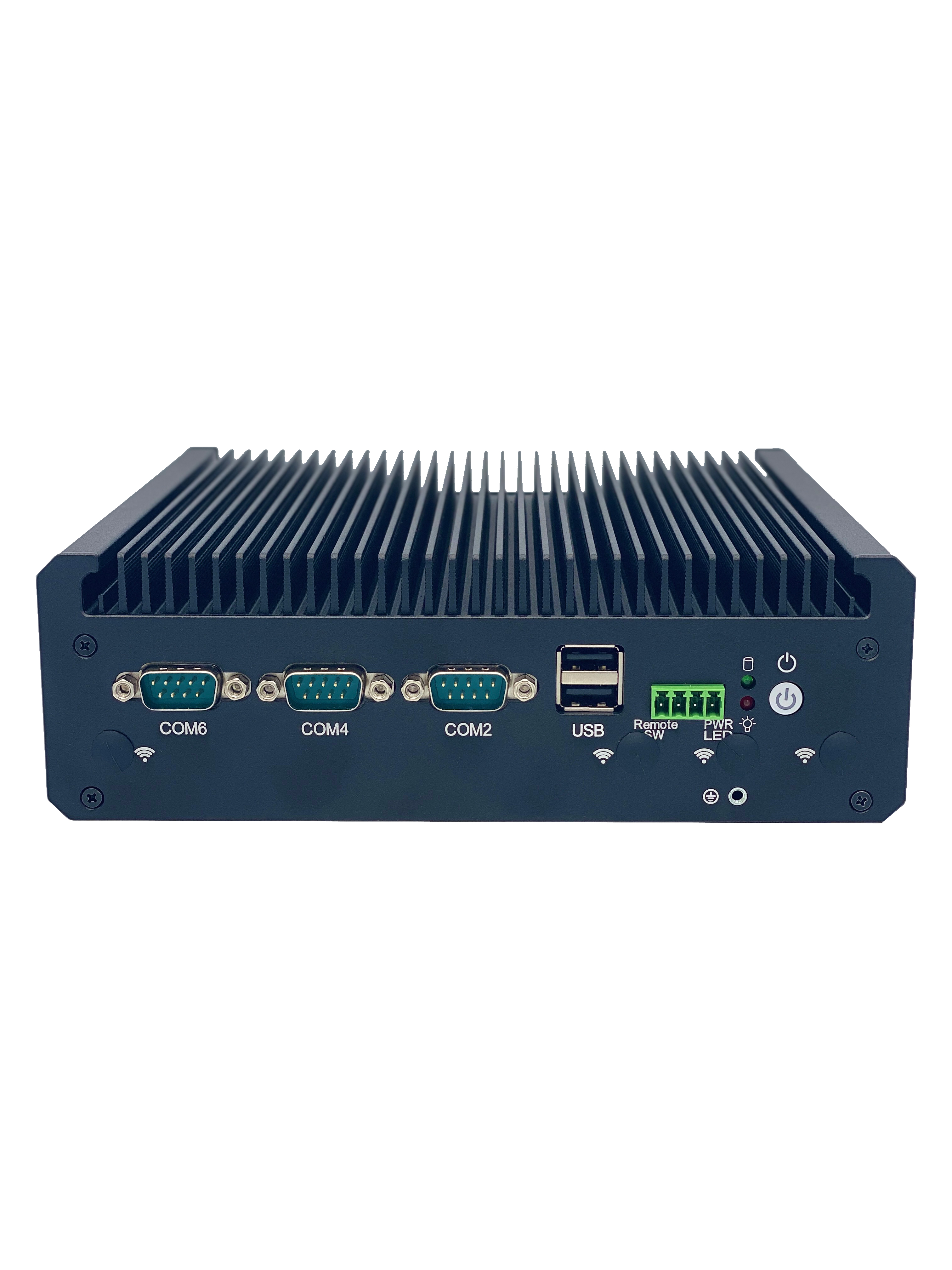

◆Onboard Intel Core SkyLake-U/KabyLake-U/KabyLake R-U series processors
◆ 2 x DDR4 SO-DIMM, maximum 64GB
◆ 1 x HDMI, 1 x VGA
◆ Single or dual network options, 6 x DB9 COM
◆1 x MiniPCIe, 4bit GPIO, remote switch
◆ DC 12V; Dimensions: 195x177x62 mm
◆Fanless cooling, multiple expansion functions
Color | Black |
Processor system | Built-in Intel Core SkyLake-U/KabyLake-U/KabyLake R-U series processors, TDP 15W |
EFI BIOS | |
Memory | 2 x DDR4 SO-DIMM, maximum total capacity of 64GB |
Storage | 1 x M.2 2280 (PCIe 2X/SATA3.0 adaptive) |
Display | 1 x HDMI,1080P |
1 x VGA,1080P | |

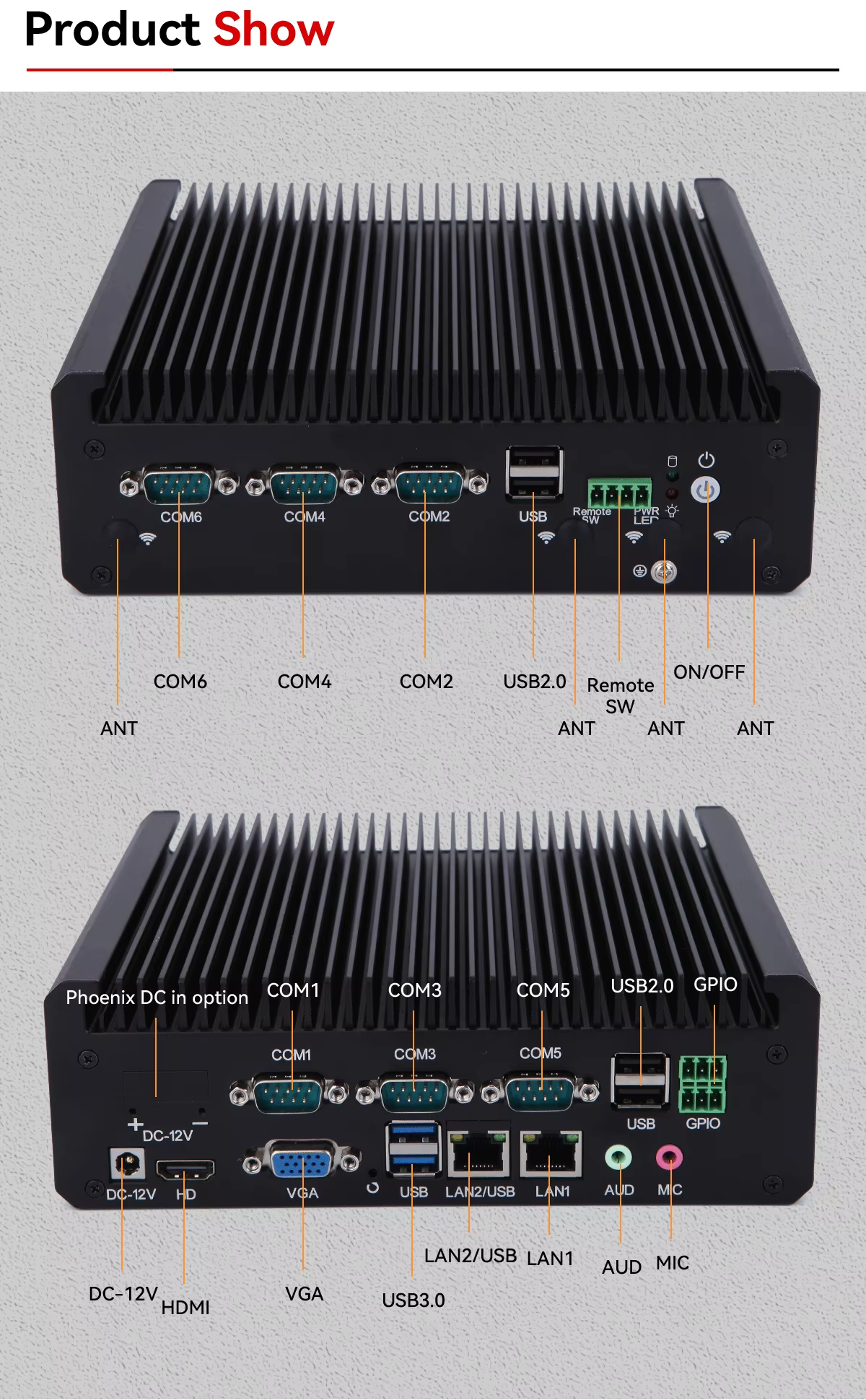

External interfaces | DC JACK, HDMI, VGA, 6 x USB (8 x USB when using a single network) |
6 x DB9 (COM2 jumper selection: RS232 as default / 485; COM1/3/4/5/6 are RS232) | |
| 4Bit GPIO, 4 x Antenna holes, Audio, Power button, LEDs (PWR, HDD), Remote switch | |
RJ45, selectable single or dual network | |
Built-in functions | 1 x MiniPCIe (PCIe + USB2.0 protocol, supports WIFI/BT/4G modules) |
Power input | DC 12V, 60W or more |
Operating environment | Operating temperature: 0℃ ~ +60℃; Operating humidity: 5% ~ 90% |
Storage temperature: -15℃ ~ +75℃; Storage humidity: 5% ~ 90% | |
Operating System Support | Windows10,Windows11,Linux |
Body size | 195x177x62 mm |
Packaging size | Single unit packaging size: 270x228x120 mm |
Large outer box size | 620x280x240 mm for 5 units |
Weight | Gross weight of a single unit is approximately 1600g (including packaging, excluding adapter) |
Fixing holes | 70x70mm spacing VESA holes (without VESA bracket) |
Optional | Left and right ear straps |
