◆The product complies with the OPS-C design specifications. Intel® 12/13th CoreTM i3/i5/i7 or Celeron®Processor
◆Support HDMI 2.0 + DP 1.4 + HDMI 2.0 (OPS end) display output
◆Support HDMI 2.0b, maximum support 4K @ 60FPS for OPS interface
◆Support 3*USB 3.2 + 3*USB 2.0 + 1*Type-C USB (optional Thunderbolt 4)
◆Support DDR4 dual-channel memory, maximum 32GB at 3200MHz
◆Support M.2 KEY-M-1 interface, supports SATA3 SSD and PCIE x4 SSD
◆Support M.2 KEY-M-2 interface, only supports PCIE x4 Nvme SSD
◆Support M.2 KEY E interface, 2230mm, supports WiFi + Bluetooth, supports WiFi6
◆Support hardware one-click system backup and restoration
◆Unique design, supports OPS interface with live plug and unplug without damage
◆Enhance USB signal driving capability, compatible with various touch panels and other devices
| Processor | Supports Intel® 12th/13th CoreTM i3/i5/i7 or Celeron® Processor | |
| BIOS | AMI BIOS with features such as write protection, diskless boot, network wake-up, power-on boot, scheduled boot, watchdog, remote power on/off, intelligent device recognition, and support for TPM2.0 | |
| Memory | Capacity | 2 x SO-DIMM，DDR4 3200 MHz Max32GB |
| Storage | Port | 1 x SATA interface (optional, for 2.5" hard drives) |
| 1 x M.2 Key-M1 supporting SATA3 and PCIE X4 NVMe SSD, 2280mm | ||
| 1 x M.2 Key-M2 only supporting PCIE X4 NVMe SSD, 2280mm | ||
| IO port display | Intel® Iris® Xe Graphics | |
HDMI: The display resolution can reach 4096x2304@60Hz. DP: The display resolution can reach 4096x2304@60Hz. | ||
| VGA display interface (42mm height OPS chassis is optional) | ||
| OPS display screen | The HDMI 2.0 display resolution can reach 4096x2304 at 60Hz. | |
| network | wired | 1 x RTL8111H Gigabit Ethernet (board-mounted RJ45) |
| wireless | 1 x M.2 E Key (For WIFI+Bluetooth Card, supporting CNVi protocol WiFi6) | |

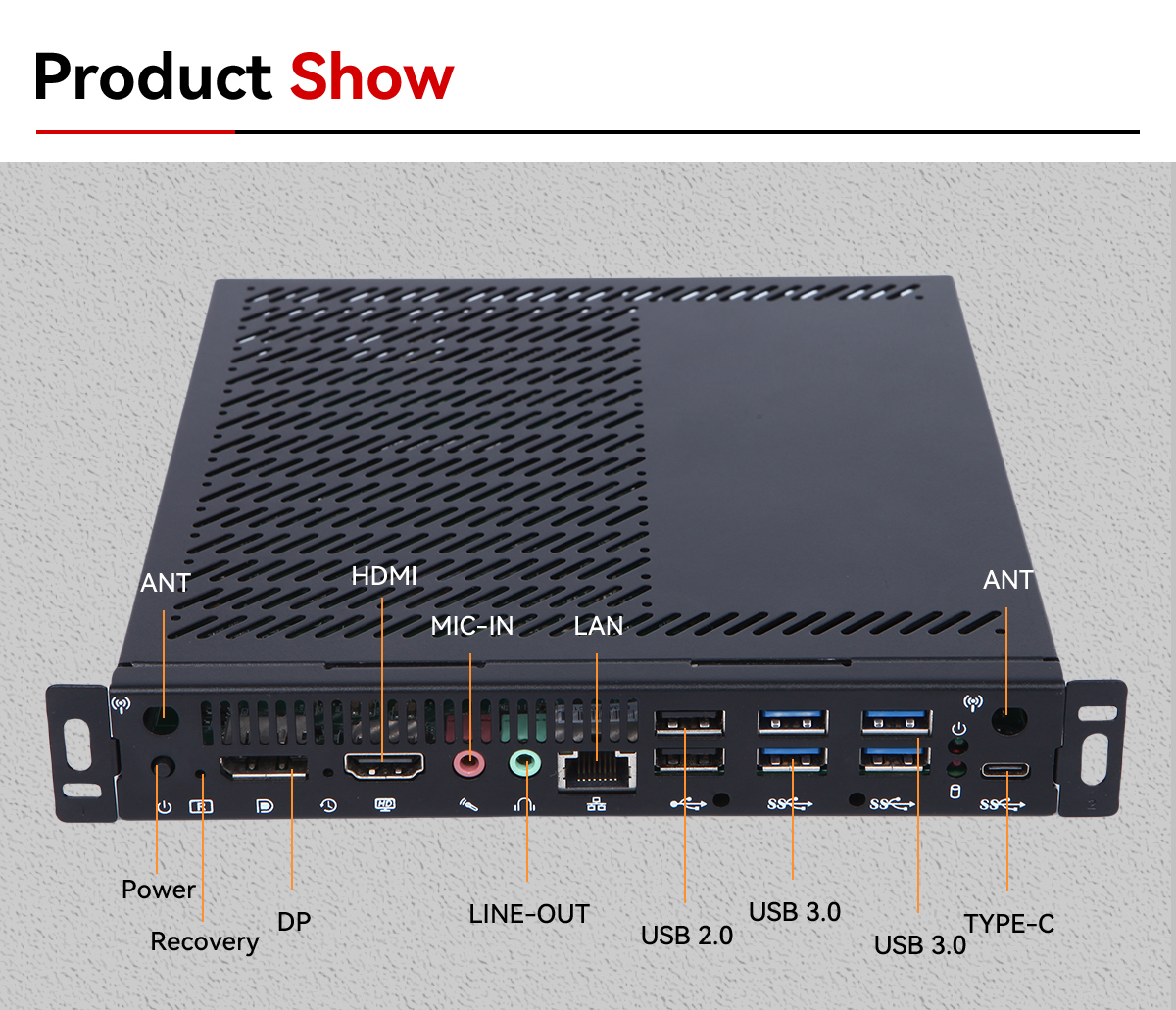

| I/O | USB | 3 x USB3.2 3 x USB2.0 1 x Type-C (With Lightning 4 option) |
| LAN | 1 x RJ45 | |

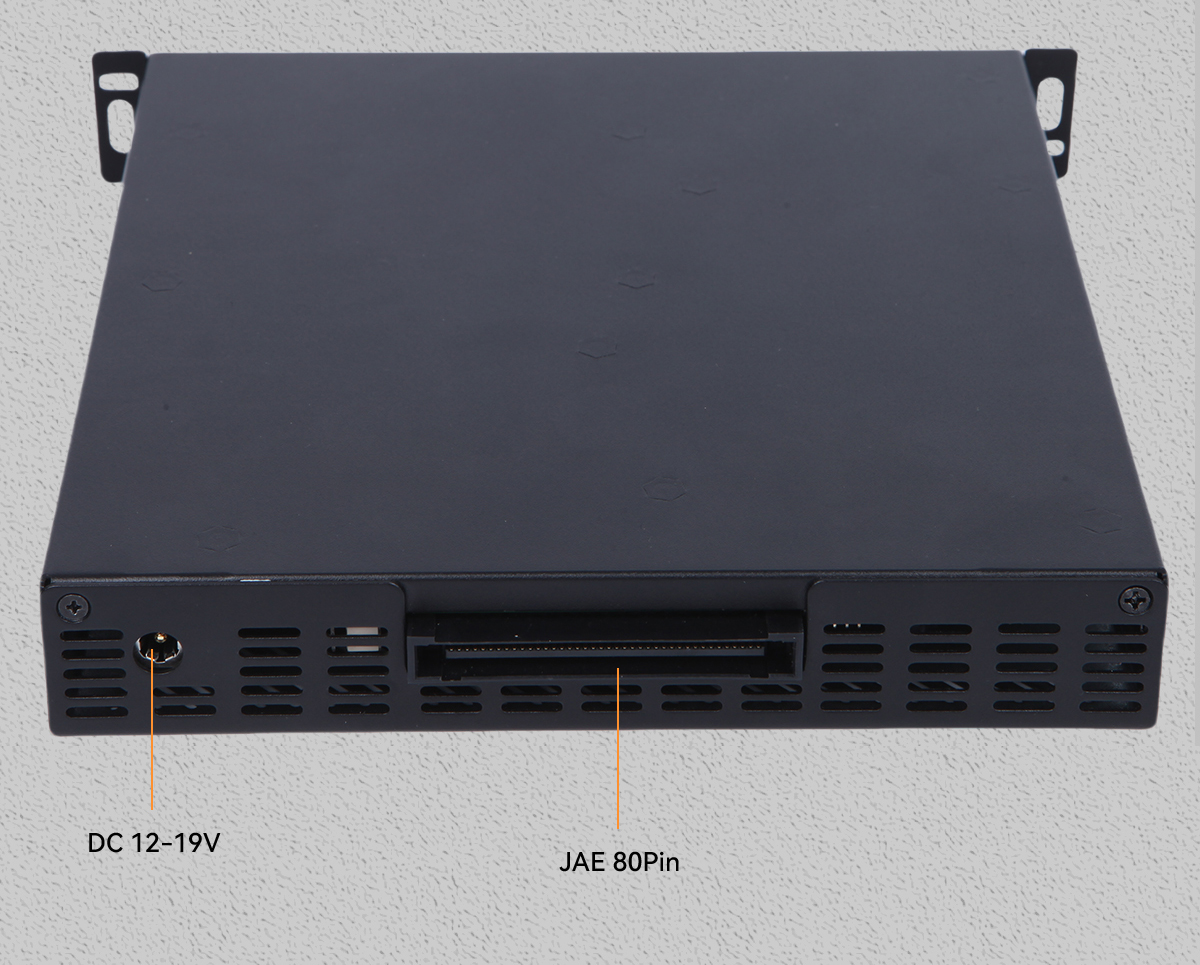

| socket | 1 x DC power socket 1 x OPS80pin | |
| LED | 1 x POWER LED 1 x HDD LED | |
| Button | 1 x Power Button | |
| 1 x RESET (short press to restart long press to CLEAR-CMOS) | ||
| 1 x Ghost key (System One-click Restore) | ||
| Audio | 1 x LINE-OUT &1 x MIC-IN | |
| power supply | Import | DC 12~19V |
| watchdog | function | Restart the system after a crash |
| interval | 1 ~ 65535sec | |
| Mini Pc Size | 185 (L) x 195 (W) x 30(H)mm | |
| operating system | versions | windows10 / windows11/Linux |
| work | temperature | Working temperature: 0°C ~ 60°C Storage temperature: -15 ~ 75°C |
| environment | humidity | 0% - 90% No condensation |
